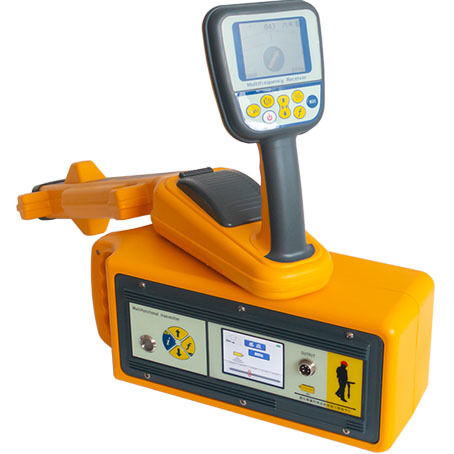

XHGX507X Cable Pipeline Locator
- The signal transmission connection mode of the transmitter: direct connection method, coupling method, induction method.
- Receiver working mode: wave peak method, wave valley method, step voltage method.
This XHGX507X underground cable pipe locator uses the electromagnetic field signal of the underground cable to locate the cable, and gives the depth and current readings, so as to realize the cable detection function.
Transmitter Features:
★Displays the current output frequency.
★Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively.
★Display the current working mode; can display direct connection, coupling, induction respectively.
★Displays the current loop current value; the effective display is 0-999 mA.
★Display the current loop impedance value; the effective display is 00001 - 20000 ohms.
★Indicates the current battery level; it is represented by a battery symbol, all black is full power, and the left side is the current battery percentage display.
Receiver Features:
Q: How does the device display the current receiving frequency value?
A: It shows the current receiving frequency value, with the initial power-on set at 577Hz.
Q: How is the signal strength represented?
A: The signal strength is represented by the length of the grating, which moves from both sides to the middle, and when the grating is full, the signal is too strong or out of range. It is also indicated by a number ranging from 00.0 to 99.9, with 99.9 showing an overly strong or out-of-range signal.
Q: What indicates the direction of the pipeline?
A: A colored compass indicates the direction of the pipeline.
Q: What depth-related information is displayed?
A: The depth of the measured underground line and the current on the line are displayed.
Q: How is the gain adjusted?
A: The gain is automatically adjusted by default, with a dynamic range of 000-140db, and the initial boot gain is set at 60db.
Q: What signal reception modes can the receiver display, and what is the default mode at power-on?
A: The receiver can display narrow peak, wide peak, trough, broad peak arrow, peak + trough, and external equipment. The initial power-on mode is wide peak, and external devices are automatically recognized.
Q: How is the current battery level indicated?
A: The current battery level is indicated by the battery symbol.
Q: How is the working status of the buzzer displayed, and what is the default setting at power-on?
A: The working status of the buzzer is shown by the horn symbol plus a line: one line for low loudness, two for medium, three for high, and a cross to turn it off. The initial power-on setting turns off the buzzer.
Q: What happens when the cable is turned off?
A: When the cable is turned off, an arrow automatically appears to indicate the cable location, with two arrows appearing above the cable.
Q: What function is provided when using the SS frequency, and what additional feature is displayed?
A: When using the SS frequency, the device displays the direction of the signal current to assist in pathfinding and shows the phase of the signal, which can be cleared by long-pressing the frequency key.
Function
1) It can quickly and effectively determine the direction and depth of underground cable /metal pipelines. It can also identify power outages and live cables, and use the A-frame to accurately locate low-resistance cable faults to ground.
2) It has signal strength indication, left and right arrow indication, and compass direction indication.
3) The maximum depth of the detection pipeline can reach 20 meters.
4) Automatic sounding: When the instrument is placed above the pipeline, it will automatically display the true depth of the target pipeline.
5) Signal identification: Accurate identification of cables from three dimensions of signal amplitude, signal direction and signal phase.
6) Current direction indication: It can track the current direction and phase of the signal, effectively improving the accuracy of the search path.
7) The 70% sounding method of automatic prompting can easily determine the 70% signal point through graphics and prompt sounds.
| Transmitter |
Receiver |
| a multi-frequency high-power transmitter, with constant power output, automatically matching the external load, to ensure that the machine works in the best state. With ohmmeter function, it can detect external voltage and test continuous loop resistance, which can help to determine the nature of the fault. |
uses a 3.5-inch true color LCD display, displaying signal strength figures, amplitude light bars, compass pointing, left
Right arrow pointing, current direction indication, used to indicate the strength of the signal, optical cable location, fault detection, optical Cable identification, depth measurement. |
Optional frequency:
output 31 kinds of frequency sinusoidal AC signal, namely 98Hz, 128Hz, 256Hz, 480Hz, 491Hz, 512Hz, 577Hz, 640 Hz, 815Hz, 982Hz, 1.02kHz, 1.17KHz, 1.45KHz, 1.52KHz , 4.1KHz, 8.01KHz, 8KHz, 8.44KHz, 9.5KHz, 9.82 KHz, 29.4KHz, 33 KHz, 38 KHz, 65.5 KHz, 78.1KHz, 80.43 KHz, 82KHz, 83.1KHz, 89KHz, 133KHz, 200KHz. |
Available frequencies:
10 kinds, 50Hz, 60Hz, LF, 577Hz, 8KHz, 33 KHz,82KHz, 133KHz, current direction signal SS Low, SS High. |
| Digital direct reading depth range: |
0-20 meters. Accuracy: ±5% within 3 meters, ±10% within 8 meters. |
| Three signal transmission methods: |
direct connection method, coupling method and induction method. |
four gears:
low-grade, mid-grade, high-grade and full-grade. |
5 display modes:
wide peak value, valley value, narrow peak value, wide peak value arrow, and peak value plus valley value. |
Fault detection and identification signal positioning mode, sound transmission mode, current direction signal SS Low, SS High.
3) With intelligent signal identification phase function. |
Signal identification: Accurate identification of optical cables and cables from the three dimensions of signal amplitude, signal direction and signal phase. |
Display content:
frequency setting, battery status, digital display output current and loop resistance, output mode, external power supply, external voltage warning. |
Display content:
signal strength, signal amplitude light bar, left and right arrow indication, compass direction indication, current direction indication, current phase display, real-time depth indication, intelligent signal recognition phase, signal gain. |
| The maximum output current is not less than 1A; the maximum output power is not less than 12W. |
3.5-inch 24-bit color LCD display. The backlight brightness is adjustable to adapt to various environments. |
| Ohmmeter function, can detect external resistance, external dangerous voltage prompt. |
Current direction indication: It can track the current direction and phase of the signal, effectively improving the accuracy of the search path. |
