Xzh Test Double Gun Latest Cable Fault Puncturer Cable Fault Locator System

Name: Xzh Test Double Gun Latest Cable Fault Puncturer Cable Fault Locator System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506S
Price: 1,050.00 USD
Availability: InStock

Szczegóły produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	XZH Test
Orzecznictwo:	CE/ISO
Numer modelu:	XHZS506S

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

XZH Test

Orzecznictwo:

CE/ISO

Numer modelu:

XHZS506S

Podkreślić:

High Light

Podkreślić:

double gun cable fault locator

cable fault puncturer system

cable fault locator with warranty

Trading Information

Minimalne zamówienie:

1Unit

Szczegóły pakowania:

Drewniane pudełko

Czas dostawy:

5-8 dni pracy

Możliwość Supply:

2000 jednostek/rok

Opis produktu

XHZS506S Cable Spiker

Basic Info.

Model NO.

XHZS506S

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Transport Package

Exported Wooden Case

Specification

470*380*210 (mm)

Trademark

XZH TEST

Origin

China

Production Capacity

2000PCS/Year

Product Description

Every year in the power system, people get hurt because they accidentally saw the wrong live cables. There's a device that can fix this problem. It's a remote-controlled automatic piercing device that can puncture and damage the cables on the spot. If the cable's live, it'll explode when it gets punctured. If it's not live, it won't do anything.

When you're working on power cable construction, and you need to move or repair the laid cables, you often have to cut them. To keep the workers safe, you need to figure out which cables are live. You have to identify the cables first, and then you can cut them.

There are two ways to check if the cables are live. One way is to look at the original design and construction records. The other way, which is more certain, is to use a remote-controlled automatic puncturing device to short-circuit the cable to the ground or to another phase. This way, you can be sure whether the cable is live or not.

After the cable is identified, before sawing, it is a special instrument for further destructive judgment of the cable
after the cable is identified. 100% confirm whether the cable is live, absolutely guarantee the personal safety of the staff.

1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of piercing and form a short circuit point;
2. It is controlled by wired + wireless remote control, and it can be remote controlled through the wall;
3. AC and DC dual-use, built-in lithium battery pack and large-capacity energy storage device, long charging time;
4. Small size and light weight, very suitable for field use.

Shooter	2 gun bodies
Remote control distance	More than 10 meters, you can remote control through the wall
Control line length	5 meters
Fixture diameter	φ30-150mm
Working power	Charging AC 220V/50Hz, the built-in battery works continuously for more than 10 hours

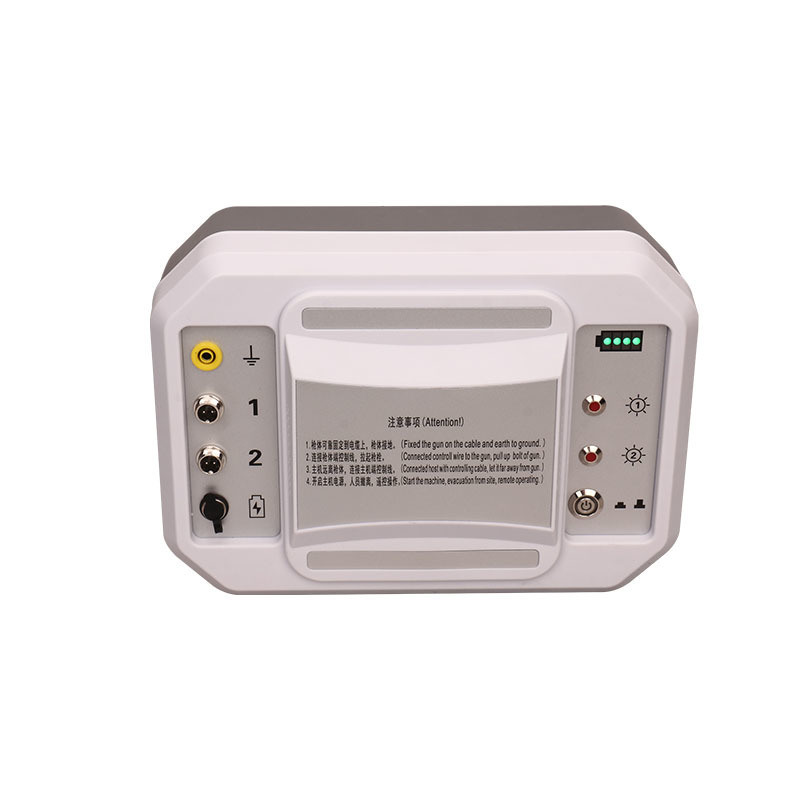

Controller	270×230×120mm 2.5kg
Whole set	470×380×210mm 15.5kg (dual gun 506S)
