China Factory Price Underground Tdr Cable Fault Locator with 10 Inch LCD Display

XHGG501D TDR cable fault locator is suitable for measuring low resistance, short circuit, open circuit and disconnection faults of various materials of various materials with different cross-sections and different media, high-frequency coaxial cables, local telephone cables, street light cables, and buried wires, and High-resistance leakage and high-resistance flashover faults.

1. Industrial grade 8"LCD display-viewing angle] 160°, working temperature -25ºC~+65ºC;

2. SCM centralized control, touch operation mode, strong anti-interference ability;

3. It has the functions of distance measurement, speed measurement and resistance measurement;

4. Fully automatic continuous sampling, never miss any discharge waveform;

5. Test method: flashover sampling, low-voltage pulse sampling

6. Pulse amplitude: 100Vpp

7. Pulse width: 0.1uS and 2uS

8. Measuring distance: Smax: 30km; Smin: 15m

9. Measurement error: absolute error of rough measurement: ±10m relative error of rough measurement: ±1%

10. Power supply mode: built-in lithium rechargeable battery, which can work continuously for 6 hours

It can also be connected to AC 220V±10%  50Hz power supply
Charging in non-working state.

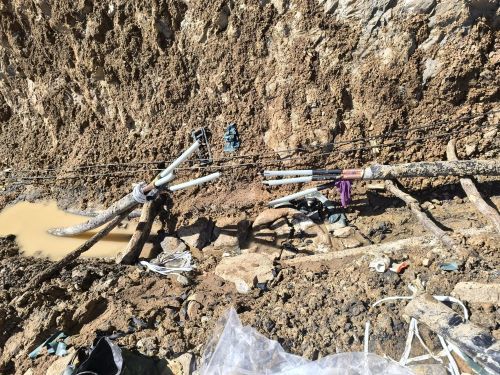

Cable Model :10kV XLPE cable.

Testing device:    1. TDR underground cable fault locator

                            2. DC High voltage surge generator
                            3. Cable fault pinpointer

Packaging: Wooden box

Shipping: DHL TNT FedEx and UPS etc.

Shipping time: 7-15 days if it's in stock.
